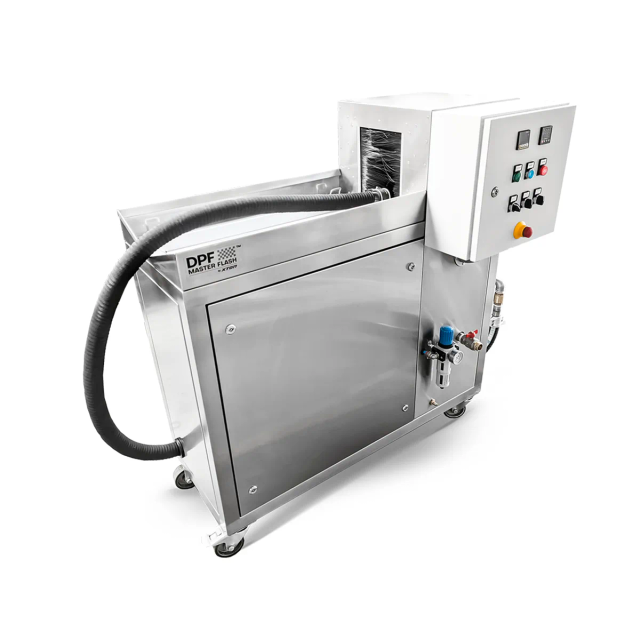

DPF Master Flash™ Standard
A compact machine for regenerating particulate filters using the hydrodynamic method, designed for workshops just starting out in this service.
A compact machine for regenerating particulate filters using the hydrodynamic method. It features a 100-litre tank, a pump with a flow rate of up to 133 l/min and an integrated filtration system. The cleaning cycle is automatic and can restore the filter’s factory parameters by up to 99%.
It comes standard with the adapters needed to connect all types of DPF filters from cars and vans. To improve the effectiveness of the regeneration process, XTON® recommends combining this machine with the DPF Heater Pro PLUS drying unit, since the Standard does not have a drying system of its own.
Manufacturer warranty of 12 months
Equipment
- liquid-level sensor
- temperature sensor
- programmable temperature controller
- programmable automatic-cycle controller
- 100-litre water tank
- water pump
- integrated pressure reducer, 0 to 8 bar
- integrated filtration system
- adapters for DPF filters
Technical parameters
| Weight | 150 kg |
|---|---|
| External dimensions | 180 × 80 × 135 cm |
| Heated liquid tank | 100 l |
| Thermal parameter printer | No |
| Working pressure | up to 3 bar |
| Supply voltage | 3 x 400 V |
| Maximum power | 7 kW |
| Frequency | 50 Hz |
| Water connection (inlet) | 1" |
| Air connection | pneumatic quick coupling DN7.2, male |
| Ambient temperature | 5–35 °C |
| Operating noise level | up to 70 dB |
| Liquid temperature | adjustable from 30 to 70 °C |
| Optimal operating temperature | 38 °C |
| Pressure hose diameter | 6/4" |
| Filtration pump flow rate | up to 133 l/min |
| Filtration stages | 2 |
| Filtration grade | 5–100 µm |
| Safety features | liquid level sensor, temperature sensor, emergency stop |
| Declaration of conformity | CE |
