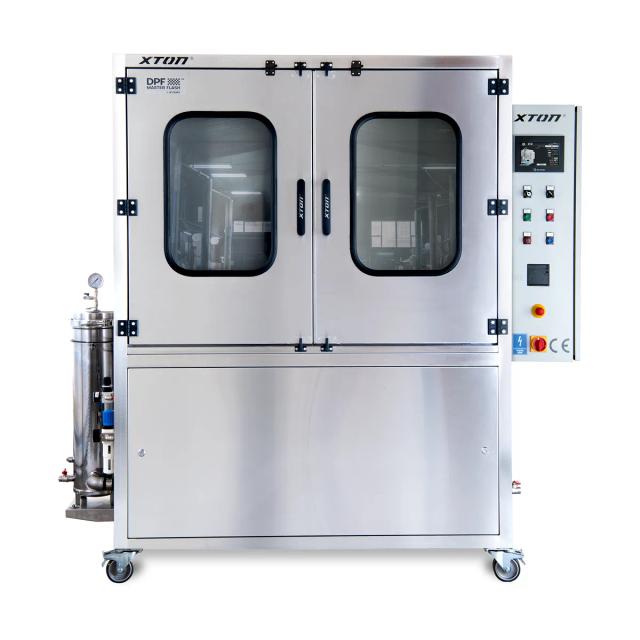

DPF Master Flash^™ Professional PLUS

High-end machine for regenerating DPF / FAP / GPF / SCR / EURO5 / EURO6 particulate filters and catalytic converters, built entirely from stainless steel.

A top-quality machine for cleaning and regenerating DPF / FAP / GPF / SCR / EURO5 / EURO6 particulate filters and catalytic converters. Built entirely from AISI 304 stainless steel and AISI 316 acid-resistant steel, suitable for all types of vehicles.

It features an Italian pump with contamination-resistant chemical sealing and electronics based on components from leading European manufacturers, guaranteeing maximum quality and reliability. It can run in automatic mode or in service mode, which runs only the selected stage of the process.

The hydrodynamic method, combined with the specific XTON^® DPF Cleaner Extra Power chemistry, removes PM10, PM2.5, soot, oil, cerium and heavy metal residue without any mechanical intervention on the filter, restoring its factory performance by up to 99%.

Compatible with filters from vehicle brands including MAN, Iveco, Solaris, Mercedes Actros, Scania, Renault, DAF, Hitachi and many others.

Buy now

Manufacturer warranty of 12 months (extendable to 24, 36 months)

Equipment Technical parameters Master Box^™

Equipment

top-brand components (Schneider, Ebara, Calpeda, Weintek, Eaton, Hager, Wieland, Fatek, Leister, Siemens)
7" colour touchscreen
mobile app for controlling the machine
sensors for liquid level and temperature, air temperature, pressure, door opening, fault and phase sequence
emergency-stop, door limit-switch, fault and phase-sequence safeguards
filter contamination measurement system
AISI 316 stainless-steel chamber
extended 3-stage filtration system
two heating elements
integrated drying in a range of 70 to 130 °C
cooling for the drying system
built-in thermal parameter printer
Ethernet controller for remote diagnostics
set of DPF / FAP / GPF / KAT / SCR adapters, including EURO5 and EURO6
consumables starter kit (filters + 2 l of XTON^® DPF Cleaner detergent)
12-month manufacturer's warranty (extendable to 24 or 36 months)

Optional extras:

automatic bidirectional filter cleaning
second liquid circuit with additional pump
thermal insulation for the liquid tank
automatic liquid-level top-up
Quick-X quick filter-mounting system

Technical parameters

Technical parameters
Weight	650 kg
External dimensions	210 × 115 × 215 cm
Chamber dimensions	140 × 89 × 107 cm
Heated liquid tank	275 l
Tank thermal insulation	No
Automatic water refill	No
Thermal parameter printer	Yes
Working pressure	6–8 bar (87–116 psi)
Supply voltage	3 x 400 V
Maximum power	12 kW
Frequency	50 Hz
Water connection (inlet)	1/2"
Water connection (drain)	6/4"
Air connection	pneumatic quick coupling DN7.2, male
Ambient temperature	5–35 °C
Operating noise level	up to 70 dB
Liquid temperature	adjustable from 30 to 70 °C
Drying temperature	adjustable from 70 to 130 °C
Optimal operating temperature	38 °C
Pressure hose diameter	6/4"
Filtration pump flow rate	up to 250 l/min
Filtration stages	3
Filtration grade	5–100 µm
Airflow	up to 430 m³/h
Regeneration method	automatic, unidirectional
Contamination measurement system	mbar, kPa
Safety features	temperature sensor, pressure sensor, door-open sensor, emergency stop
Declaration of conformity	CE

Also available in a Master Box^™ bundle

Pair the Professional PLUS with a Master Cleaner, Smart Cleaner, Flow Cleaner or one of our blasting machines in a Master Box^™ pack: one delivery date, one training day covering both machines, and the same manufacturer's warranty and technical support you'd get buying each machine separately — at a better combined price.
