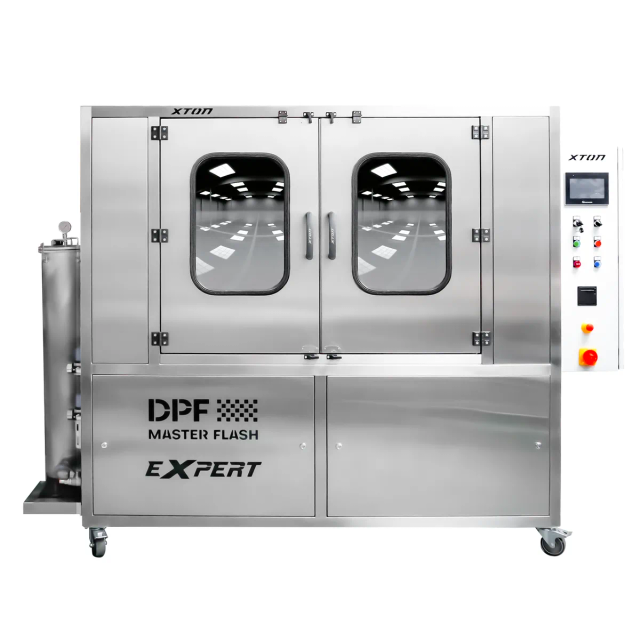

DPF Master Flash™ Expert
The most advanced machine for regenerating DPF / FAP / GPF / SCR / EURO5 / EURO6 particulate filters and catalytic converters, designed to treat filters from cars, vans, trucks, buses, and agricultural and construction machinery.
This is an innovative machine that stands out from the competition. The use of top- quality components and a well-resolved design make it the most efficient and effective product on the market.
Master Flash technology, based on the hydrodynamic method, restores filter efficiency by up to 99% and is safe for the DPF’s monolithic structure. Correctly selected parameters allow complete removal of PM10 and PM2.5 residue, soot, carbon deposits, cerium oxides and heavy metals, while preserving the filter’s factory properties.
Manufacturer warranty of 12 months (extendable to 24, 36 months)
Equipment
- automatic bidirectional regeneration programme (washing and drying)
- second liquid circuit with an additional pump
- automatic water and chemical top-up
- 7" colour touchscreen
- sensors for liquid level and temperature, air temperature, pressure, door opening, fault and phase sequence
- contamination measurement system (back-pressure test with parameter printout)
- AISI 316 stainless-steel chamber
- integrated filter drying system at 70–130 °C
- cooling for the drying system
- extended 4-stage filtration system
- built-in, customisable thermal parameter printer
- Ethernet controller for remote diagnostics
- machine-monitoring module via mobile app (Google Play and App Store)
- thermally insulated liquid tank with a capacity of up to 600 l
- 1060 m³/h side-channel blower
- two liquid pumps (washing and filtration)
- triple water-heating system
- frequency-inverter control
- 5 regeneration programmes with editable settings
- pressure hoses with 2.5″ camlock connections
- set of adapters for all filter types, including EURO5 and EURO6
Optional extras:
- passive drying chamber
- Quick-X quick filter-mounting system
Technical parameters
| Weight | 950 kg |
|---|---|
| External dimensions | 270 × 145 × 215 cm |
| Chamber dimensions | 200 × 105 × 107 cm |
| Heated liquid tank | 600 l |
| Tank thermal insulation | Yes |
| Automatic detergent dosing | Yes |
| Automatic water refill | Yes |
| Thermal parameter printer | Yes |
| Working pressure | 7–8 bar (102–116 psi) |
| Supply voltage | 3 x 400 V |
| Maximum power | 18 kW |
| Frequency | 50 Hz |
| Water connection (inlet) | 3/4" |
| Water connection (drain) | 6/4" |
| Air connection | pneumatic quick coupling DN7.2, male |
| Ambient temperature | 5–35 °C |
| Operating noise level | up to 82 dB |
| Liquid temperature | adjustable from 30 to 70 °C |
| Drying temperature | adjustable from 70 to 130 °C |
| Optimal operating temperature | 38 °C |
| Pressure hose diameter | 2 ½" |
| Filtration pump flow rate | up to 450 l/min |
| Filtration stages | 4 |
| Filtration grade | 5–100 µm |
| Airflow | up to 1,060 m³/h |
| Regeneration method | automatic, bidirectional |
| Contamination measurement system | mbar, kPa |
| Safety features | temperature sensor, pressure sensor, door-open sensor, emergency stop |
| Declaration of conformity | CE |
Comfort Pack
Choose your Comfort Pack and get peace of mind with your machine
Comfort Pack is a subscription service: you get a recurring shipment of XTON® DPF Cleaner Extra Power concentrate and filter cartridges, plus an extended manufacturer's warranty, for one all-in price. Pay once and enjoy full comfort with your machine for up to 4 years.
Comfort Pack also comes with a certificate permanently linked to your machine — it stays valid even if you sell the machine to someone else.
What does the extended manufacturer's warranty cover?
Every new machine comes with a standard 1-year manufacturer's warranty covering all components. Comfort Pack lets you extend that cover by up to another 36 months, for up to 4 years of full protection in total.
How long will I keep receiving consumables for my machine?
Comfort Pack is built to be flexible. For DPF-regenerating machines, you can choose a consumables subscription — concentrate and a full set of filter cartridges — running for 36, 24 or 12 months. Buy a new machine together with Comfort Pack and that period extends to up to 48 months. Shipments go out every month; how much you receive depends on the plan you choose:
- 1 L of concentrate + 5 filter cartridges
- 2 L of concentrate + 10 filter cartridges
- 3 L of concentrate + 15 filter cartridges
