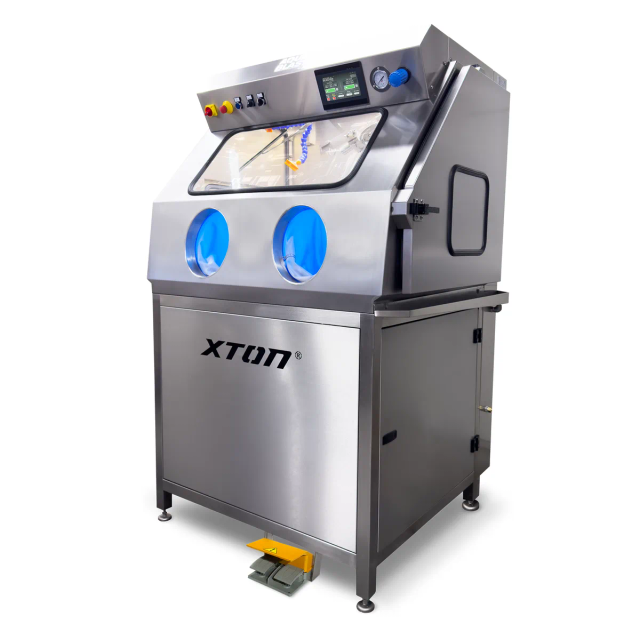

XTON Aquablaster^™

Wet blasting machine for dust-free cleaning and preparation of delicate metal surfaces, using glass-bead media suspended in water.

An enclosed wet blasting cabinet for dust-free cleaning and surface preparation of delicate metal parts: glass-bead media suspended in water is sprayed through a stainless-steel nozzle, so there’s no dust cloud and no risk of damaging the material’s surface structure.

Liquid temperature and spray pressure are both adjustable, and the viewing window has its own wiper and rinse function to keep the workpiece visible throughout the cycle. Ergonomic construction means it can be operated without specialist training.

Buy now

Equipment Technical parameters Master Box^™

Equipment

stainless-steel nozzle, interchangeable for 4–14 mm diameters
mixing and delivery pump, 2.2 kW, 20–40 l/min
liquid temperature control
pressure reducer
viewing window, 270 × 780 mm, with wiper and rinse function
working table load up to 150 kg
glass-bead abrasive media
dust-free operation

Optional extras:

rotating basket, with automatic cleaning cycle
door airlock for long parts
manual rotating table

Technical parameters

Technical parameters
Weight	320 kg
External dimensions	130 × 120 × 195 cm
Chamber dimensions	105 × 90 × 70 cm
Chamber capacity	500 l
Viewing window dimensions	270 × 780 mm
Worktop load capacity	up to 150 kg
Supported nozzle sizes	4–14 mm
Nozzle material	stainless steel / ceramic
Working pressure	up to 5 bar
Cleaning efficiency	up to 5 m²/h
Mixing pump flow rate	20–40 l/min
Air consumption	500 l/min
Reference nozzle diameter	3 mm
Airflow	up to 120 m³/h
Operating temperature	10–50 °C
Supply voltage	3 x 400 V
Maximum power	2.2 kW
Declaration of conformity	CE
